1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Name: 10uF 105nF Metal Polypropylene Film Capacitor 400V
Brand: GDHY
Price: 0.1 USD

China 1.0uF 105nF Metal Polypropylene Film Capacitor 400V factory

Brand Name : GDHY

Model Number : CBB22 105J400 20

Certification : SGS,ISO

Place of Origin : GUANGZHOU

MOQ : 30KPCS

Price : 0.1 USD/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 KPCS/ MONTH

Delivery Time : 14 DAYS

Packaging Details : CARTON

TYPE : Metal polypropylene film capacitor

PLACE OF ORIGIN : CHINA

SUPPLIER TYPE : Original manufacturer, Retailer

CHARACTERISTICS : Resistance to high voltage , small tgδ, low temperature rise

Terminal : Double Fast

MODEL : CBB22 105J400 20

MATERIAL : Polypropylee

PITCH : 2.0CM

Catalogue : Passvie component

OPERATION TEMPERATURE : -40℃～85℃

DIMENSION : 23*20*13MM

ENCAPSULATION : Flame retardant epoxy resin powder encapsulation

TOLERANCE : ±10%

CAPACITANCE : 105nF

APPLICATION : S-correction circuits of the display device and Common use

RATED DC VOLTAGE : 400VDC

COLOR : red

CERTIFICATION : CQC, KC, VDE, SGS ETC

Media Available : datasheet, Photo

Contact Now

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Technical Parameter

Reference Standards	GB/T 10190 (IEC 60384-16)
Climate Category	40/85/21
Operating Temperature Range	-40℃~85℃
Capacity Range	0.01uf-2.2uf
Rated Voltage	100VDC,250VDC,400VDC,630VDC
Capacity Tolerance	±5%(J);±10%(K);±20%(m)
Withstand voltage	Vt-t:1.75Un 5S (at 20±5℃)
Insulation Resistance	R C≥3000s；at 1000VDC;25℃ ±5℃,60s

Application

LED Driver,power,supply,meters, General purpose

Features

1)This is constructed from metallized polypropylene film dielectric, non-inductive construction.

2)Epoxy resin coating, radial CP wire.

3)Very small dissipation factor at high-frequency, very small inner temperature rise.

4) Good stability of capacitance, excellent insulation resistance property.

5) excellent self-healing property.

6) suitable for DC, pulse, high-frequency large-current application widely used in display, sound equipment, audio-visual devices, telecommunication equipment, data transmission and process facility and various electronic equipment.

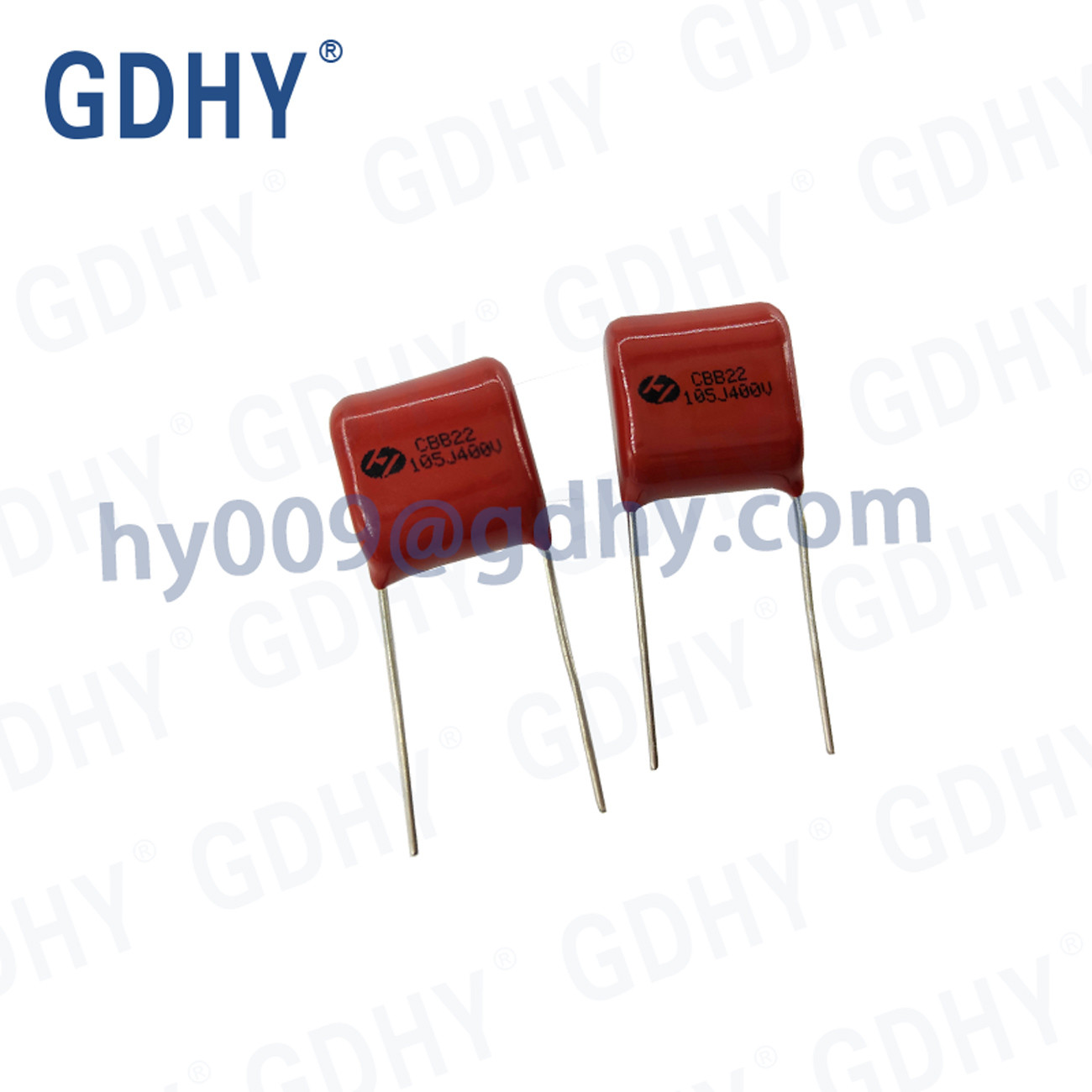

Product picture

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Product shape

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Production

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Workshop& Equipment

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Packing method

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Certificate

1.0uF 105nF Metal Polypropylene Film Capacitor 400V

Exhibition

1.0uF 105nF Metal Polypropylene Film Capacitor 400V
